50 Ohm Cable RG58 Tinned Copper Wire Braiding Coaxial Cable Copper Inner Conductor

Name: 50 Ohm Cable RG58 Tinned Copper Wire Braiding Coaxial Cable Copper Inner Conductor
Brand: Libo
Price: 1 USD

China 50 Ohm Cable RG58 Tinned Copper Wire Braiding Coaxial Cable Copper Inner Conductor wholesale

Brand Name : Libo

Model Number : RG58 coaxial cable

Certification : CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati

Place of Origin : China

MOQ : 0.1KM

Price : Call or e-mail to get the latest price

Payment Terms : T/T, L/C

Supply Ability : 10,000KM per month

Delivery Time : Within 2 weeks

Packaging Details : 100/200m/305/1000FT or according to client’s request

Inner Conductor : Stranded Copper Wire

Shielding : Tinned Copper Wire Braiding

Jacket : Black Rohs PVC

Length : 100m or 1000FT per Reel

Contact Now

50 Ohm Cable RG58 Tinned Copper Wire Braiding Coaxial Cable Copper Inner Conductorctor

Applications

CCTV installations, Control Video-cameras and Video-security in public and private places, for supervisory of buildings, enclosed spaces and open outdoor areas and any other Video frequency application of an RG58 C/U MIL standards.
Suitable for Broadcast application and other equipment in: Laboratories, Supermarkets, Airports, Hospitals, Big Areas, Sport facilities etc.
Transmission of data signals in applications such as antenna feed cables or Ethernet backbones
Industrial/instrumentation and control, computer cable, medical, RF

Description:

RG58 coaxial cable, solid copper as inner conductor, Dielectric core is insulating grade virgin polyethylene, tinned copper wire for braiding material, and PVC jacket.

Specifications:

Physical dimensions (Nominal)
Component		Material	mm
Center Conductor Diameter		Bare solid copper	0.81mm±0.02
Diameter Over Dielectric		Solid PE	2.95±0.15
Outer Condutor		Bare copper wire,0.12mm,92%	NONE
Diameter Over Jacket		PVC	4.9mm±0.15

Electrical Specifications
Impedance, Ohms		50±3
Velcoity of Propagation %C,Nominal		83%
Spark test		3000VAC
Return loss		20.8
Operating temp		' -25 to 70
Attenuation, Maximum @68℉(20℃)
Frequency (MHZ)	Maximum	Maximum
	(dB/100ft)	(dB/100m)
30MHZ	1.90	6.30
50MHZ	2.47	8.10
150MHZ	4.30	14.10
220MHZ	5.21	17.10
450MHZ	7.50	24.60
900MHZ	10.70	35.00
1500MHZ	13.90	45.60
1800MHZ	15.27	50.10
2000MHZ	16.15	53.00
2500MHZ	18.20	59.50
Attenuation is nominal value, Maximum attenuation value shall be 105% of
the nominal attenuation value

59.50

Competitive Advantage:

RG58 has lower signal loss than smaller diameter cable such as RG 174
Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.

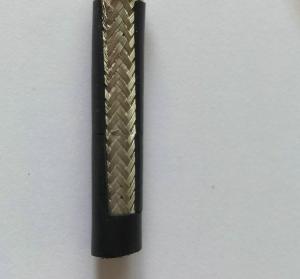

50 Ohm Cable RG58 Tinned Copper Wire Braiding Coaxial Cable Copper Inner Conductor
